Meaning “Feather” in Maori

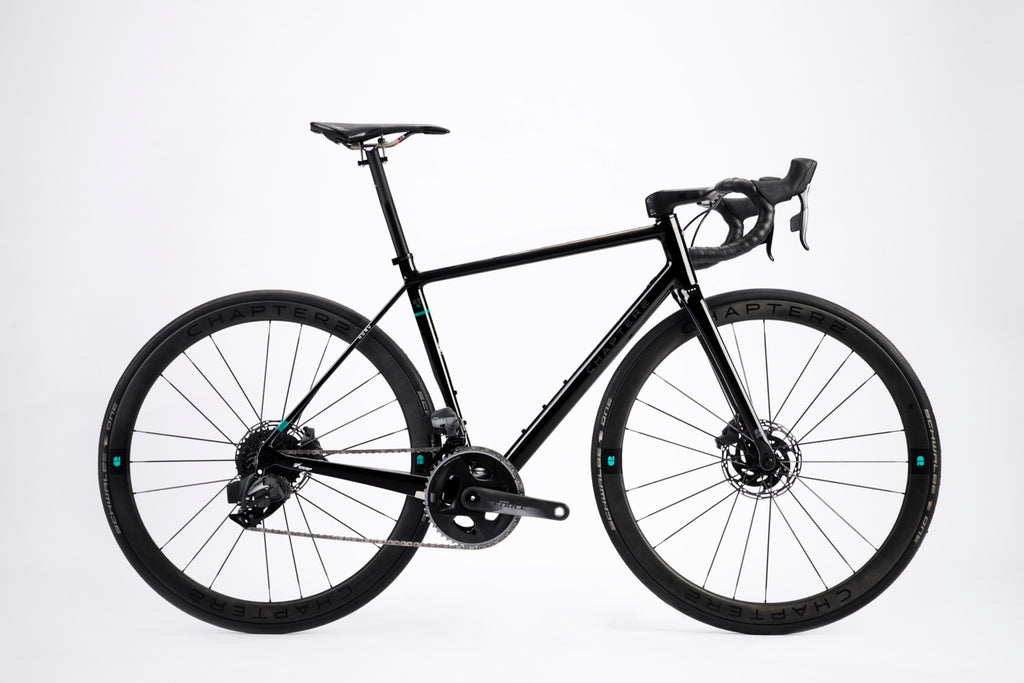

If the joy of being in the zone and scaling gradients that pushes you to the limit is what stirs you, then the HURU is the perfect tool for the job.

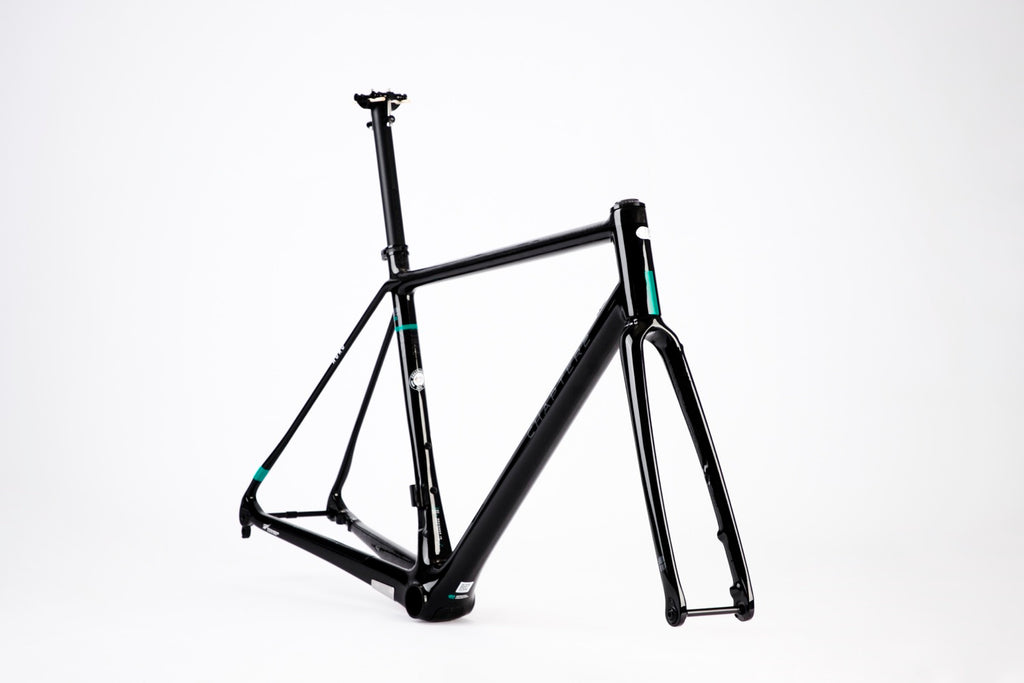

Its classic contours cleverly disguise the engineering needed to develop a high-performance lightweight frame.
With a limited number of bikes designed in each colourway you are getting something unique.
Dare to be different.
Let us help you build your dream bike or choose one of the ready to go complete bikes.
The following can be customised: Wheels, MANA handle bar size, cassette, chainring size, crank length and seat.
Note:
All dimensions are in mm unless otherwise noted
| Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Stack | 495 | 520 | 545 | 570 | 595 |
| Reach | 360 | 369 | 378 | 387 | 396 |
| A. Top Tube | 507 | 523 | 540 | 556 | 572 |
| B. Head Tube | 99 | 119 | 139 | 164 | 190 |
| C. Seat Tube Angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| D. Head Tube Angle | 70.5° | 72.2° | 73.1° | 73.5° | 73.5° |
| E. Seat Tube | 455 | 475 | 495 | 520 | 550 |
| F. BB Drop | 70 | 70 | 70 | 70 | 70 |
| G. Rear Centre | 405 | 405 | 405 | 405 | 405 |
| H. Wheelbase | 965 | 968 | 966 | 978 | 994 |
| I. Front Centre | 571 | 573 | 571 | 584 | 599 |
| J. Fork Offset | 53 | 53 | 43 | 43 | 43 |
| K. Seatpost Setback | 0 | 0 | 0 | 0 | 0 |
| Stand Over | 725 | 746 | 754 | 795 | 820 |
| Rider Height | <170 | 165-175 | 170-180 | 175-185 | >180 |
| Max. Tire Size | 28 | 28 | 28 | 28 | 28 |
| Rear Caliper Mount | 20 | 20 | 20 | 20 | 20 |
Note:
MANA Bar sold separately
All dimensions are in mm unless otherwise noted.
| Size | 80x400 | 90x400 | 100x420 | 110x420 | 120x440 |
|---|---|---|---|---|---|
| A. Stem | 80 | 90 | 100 | 110 | 120 |
| B. Width at Drops | 400 | 400 | 420 | 420 | 440 |
| C. Width at Hoods | 380 | 380 | 400 | 400 | 420 |
| D. Reach | 70 | 70 | 70 | 70 | 70 |
| E. Drop | 128 | 128 | 128 | 128 | 128 |
| F. Stem Angle | 7.0° | 7.0° | 7.0° | 7.0° | 7.0° |
