TOA

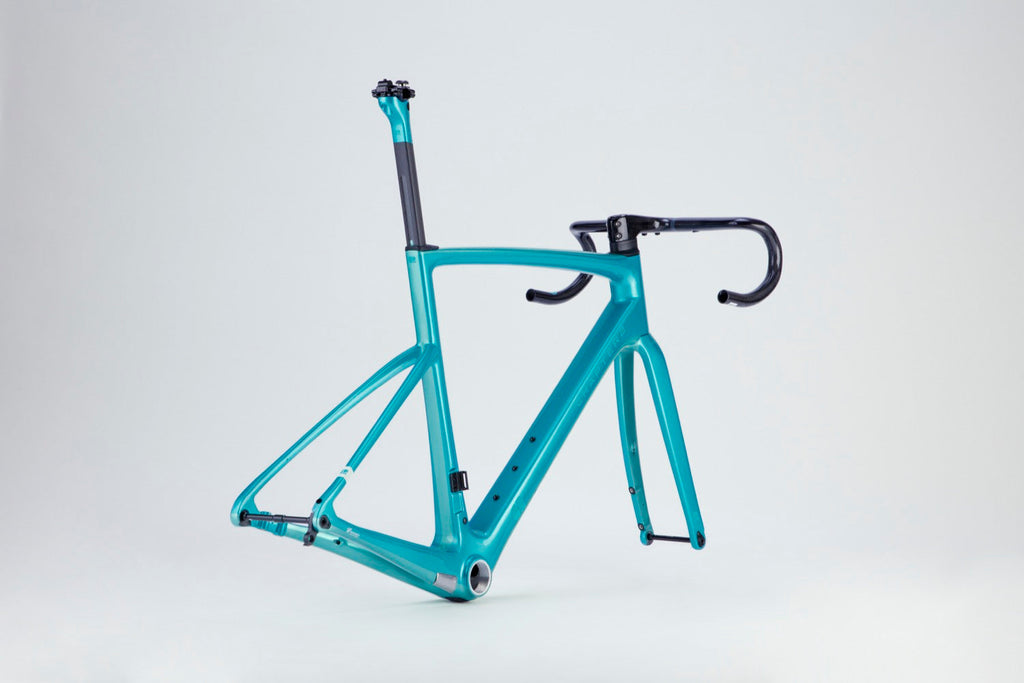

TOA which means "to be victorious, win" in Maori delivers an all-out, no-compromise carbon fibre race-ready frame platform designed, engineered, and manufactured to the most highest standards to be aero and light weight.
Aero Optimised
TOA has all its cables/hoses tucked away from sight and the wind, creating an aerodynamically seamless transition between the MANA Bar and the TOA’s Kamm-Tail chassis.
LIMITED EDITION
With a limited number of bikes designed in each colourway you are getting something unique. Dare to be different.
Road.cc Toa review
"Impressive stiffness, performance and comfort, with the bonus of limited edition paint jobs"
Cycling News TOA Review
Very comfortable yet super fast, the Chapter2 Toa is a versatile and forgiving race bike
FEATURES
Shop the range
Choose between framesets & complete bikes
Let us help you build your dream bike or choose one of the ready to go complete bikes.
The following can be customised: Wheels, MANA handle bar size, cassette, chainring size, crank length and seat.
SIZE GUIDE
FRAME GEOMETRY
Note:
All dimensions are in mm unless otherwise noted
| TOA | XXS | XS | S | M | L | XL |
|---|---|---|---|---|---|---|
| Stack | 468 | 502 | 527 | 552 | 577 | 602 |
| Reach | 357 | 363 | 372 | 381 | 390 | 399 |
| A. Top Tube | 482 | 509 | 525 | 542 | 558 | 575 |
| B. Head Tube | 72 | 95 | 115 | 135 | 160 | 186 |
| C. Seat Tube Angle | 75° | 74° | 74° | 74° | 74° | 74° |
| D. Head Tube Angle | 70° | 70° | 72° | 73° | 73° | 73° |
| E. Seat Tube | 435 | 458 | 483 | 508 | 533 | 560 |
| F. BB Drop | 73 | 73 | 73 | 73 | 73 | 73 |
| G. Rear Centre | 408 | 408 | 408 | 408 | 408 | 408 |
| H. Wheelbase | 959 | 973 | 975 | 973 | 986 | 1002 |
| I. Front Centre | 562 | 576 | 578 | 576 | 589 | 605 |
| J. Fork Offset | 53 | 53 | 53 | 43 | 43 | 43 |
| K. Seatpost Setback | 10 | 10 | 10 | 10 | 10 | 10 |
| Stem | NA | NA | NA | NA | NA | NA |
| Stand over | 715 | 735 | 760 | 786 | 811 | 837 |
| Rider Height | <165 | 160-170 | 165-175 | 170-180 | 175-185 | >180 |
| Max. Tire Size | 32 | 32 | 32 | 32 | 32 | 32 |
| Rear Caliper Mount | 25 | 25 | 25 | 25 | 25 | 25 |
MANA HANDLEBAR
Note:
All dimensions are in mm unless otherwise noted
| Size | 80x380 | 80x400 | 90x391 | 90x400 | 100x402 | 100x420 | 110x413 | 110x420 | 120x424 | 120x440 | 130x435 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A. Stem | 80 | 80 | 90 | 90 | 100 | 100 | 110 | 110 | 120 | 120 | 130 |
| B. Width at Drops | 380 | 400 | 391 | 400 | 402 | 420 | 413 | 420 | 424 | 440 | 435 |
| C. Width at Hoods | 360 | 380 | 371 | 380 | 382 | 400 | 393 | 400 | 404 | 420 | 415 |
| D. Reach | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
| E. Drop | 128 | 128 | 128 | 128 | 128 | 128 | 128 | 128 | 128 | 128 | 128 |
| F. Stem Angle | 7.0° | 7.0° | 7.0° | 7.0° | 7.0° | 7.0° | 7.0° | 7.0° | 7.0° | 7.0° | 7.0° |
