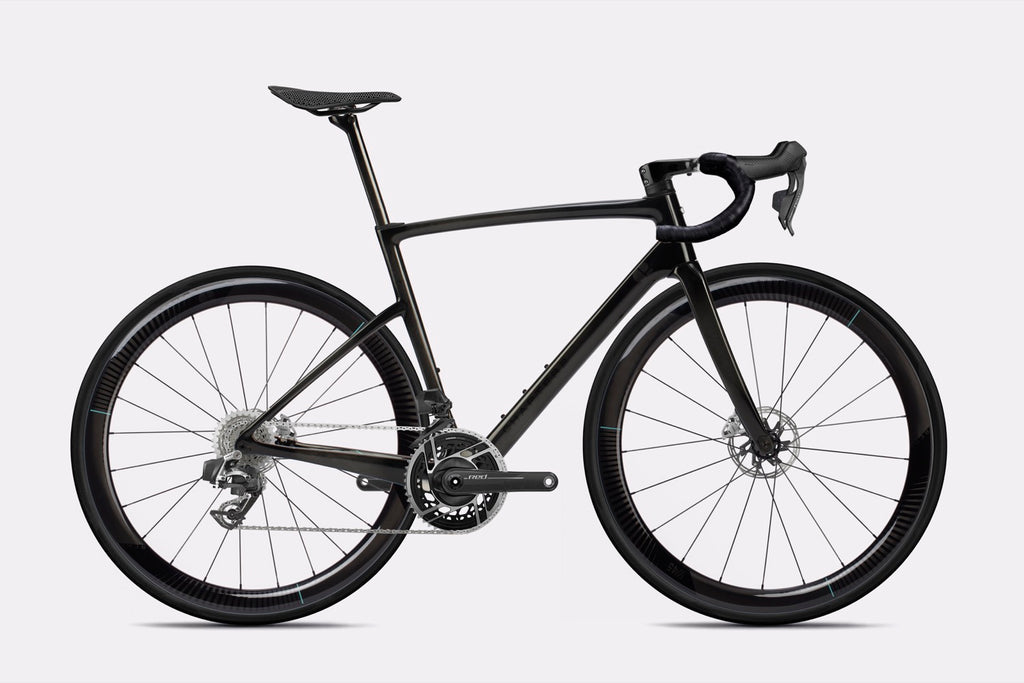

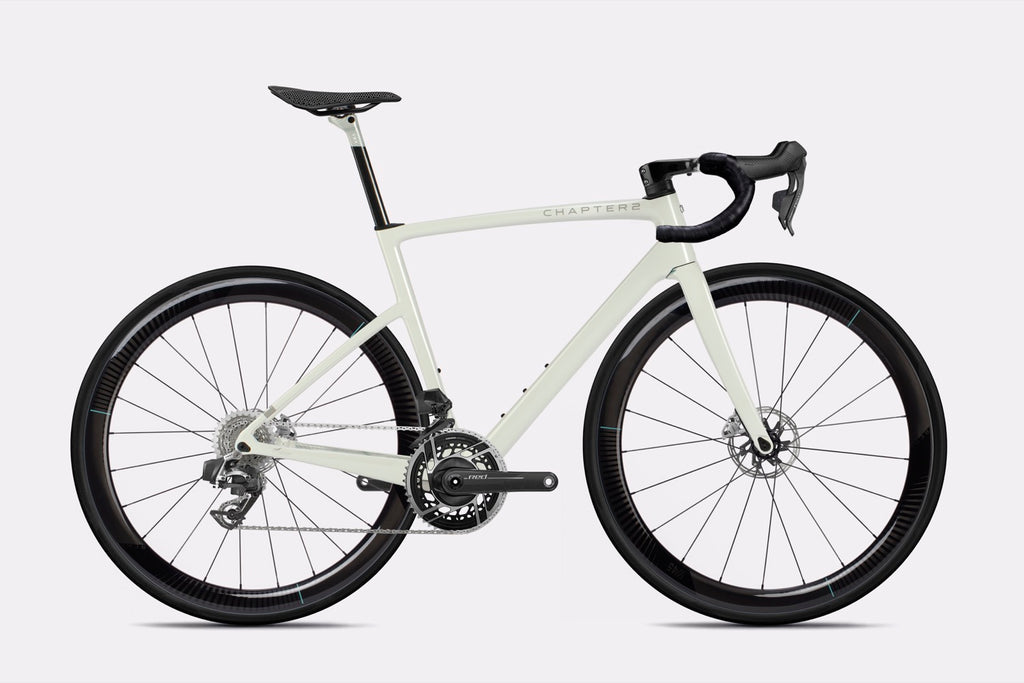

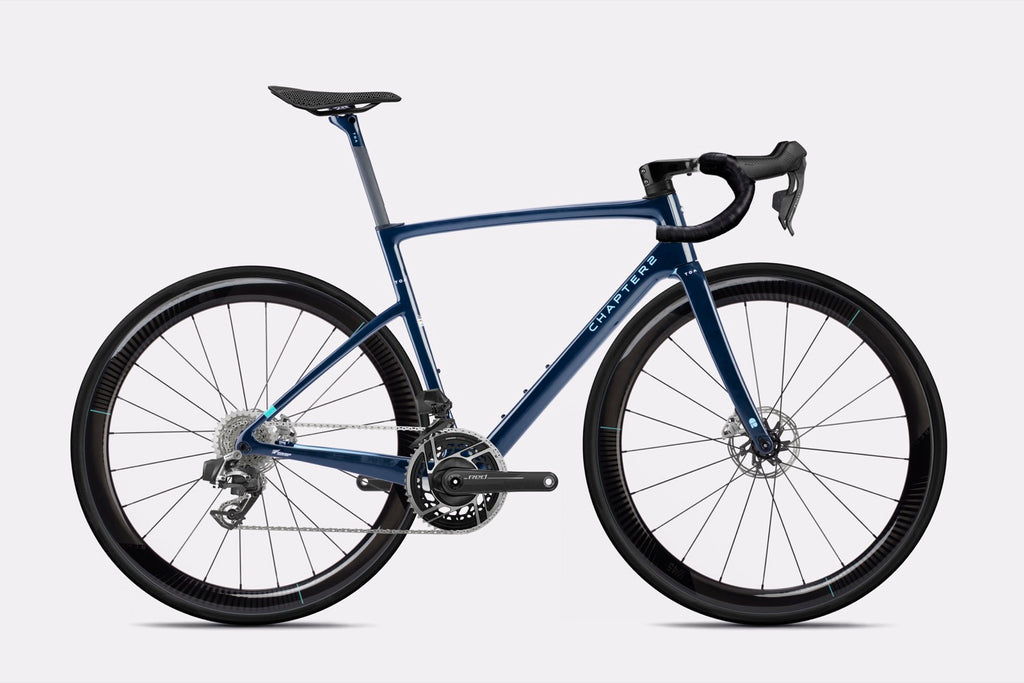

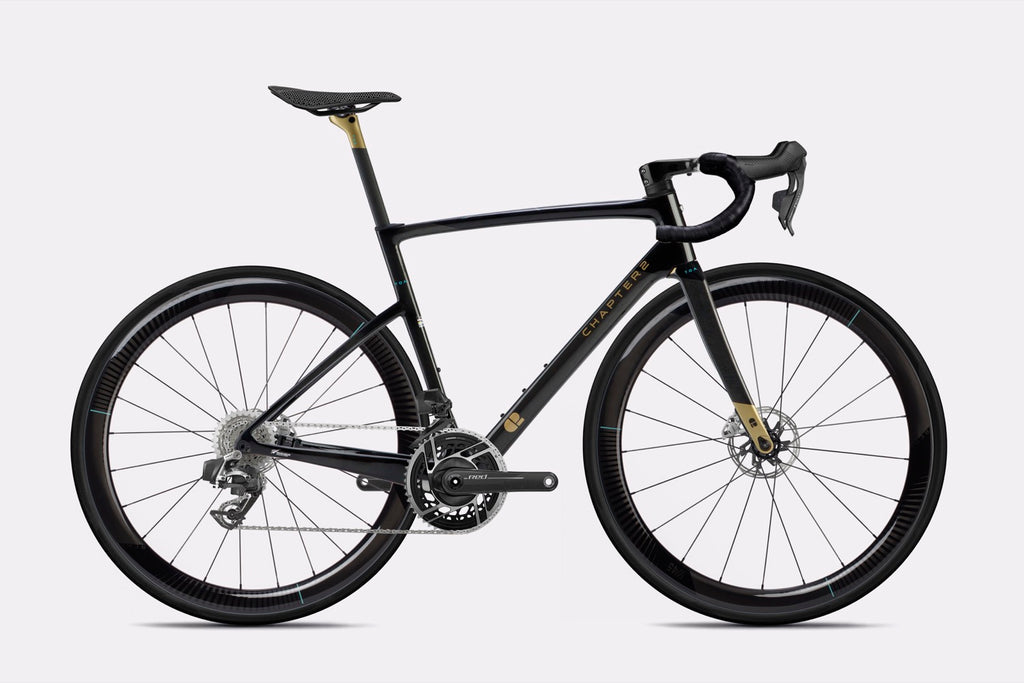

TOA - SRAM RED E1 ETAP AXS
Description
Unleash Your Cycling Potential: Introducing the Chapter2 TOA with SRAM Red E1 AXS – Your Pathway to Victory.
Prepare to elevate your ride to new heights with the Chapter2 TOA, a fusion of artistry and performance meticulously crafted in the heart of New Zealand. Inspired by the spirit of triumph encapsulated in its Maori namesake, the TOA embodies victory in every pedal stroke.
Features:
Engineered to Perfection:
Crafted from premium Toray carbon fiber, every TOA frame and fork is a testament to Japanese precision and expertise, ensuring unparalleled strength and agility on every terrain.
Aerodynamic Excellence:
With a design inspired by the revered TERE and AO series, the TOA boasts aerodynamic perfection, featuring concealed cables and hoses for a seamless airflow, maximizing your speed and efficiency on the road.
Unrivaled Power and Control:
The TOA's T47 Bottom Bracket and aluminum BB Shell, paired with high-tensile carbon construction, deliver a remarkable 7.3% increase in stiffness over its predecessors, granting you unparalleled control and responsiveness. Experience a 23.5% boost in Headtube stiffness thanks to the innovative use of a Latex mandrel in the front triangle, empowering you to conquer even the steepest climbs with ease.
Enhanced Comfort and Versatility:
Equipped with the exclusive Chapter2 MANA2 Integrated handlebar/stem system, the TOA offers superior handling and comfort, while Quick-Fit headset spacers ensure a customizable fit for every rider. With up to 32mm of tire clearance and vibration-dampening Seatstays and Seatpost, the TOA excels in both performance and comfort, allowing you to push your limits without compromise.
SRAM Red E1 AXS – The Ultimate Performance Upgrade:
Redesigned for effortless performance, the SRAM Red AXS electronic groupset revolutionizes your ride with smooth front shifting, precise power measurement, and expanded gearing choices. Fully wireless connectivity and intuitive ergonomics ensure a seamless riding experience, while its lightweight design enhances your speed and agility on the road.
Specifications:
Frame: Chapter2 TOA Carbon (100% Made in Japan by Toray)
Fork: Chapter2 Carbon (100% Made in Japan by Toray)
Handlebar/Stem: Chapter2 MANA2 Integrated
Tape: Chapter2 Black Bar Tape
Saddle: Fizik Vento Argo R3 Adaptive Kium Rail Saddle
Seatpost: Chapter2 Carbon seat post (15mm offset)
Brakes: SRAM Red E1 AXS eTap (Front and Rear)
Shift Levers: SRAM Red E1 AXS eTap
Front Derailleur: SRAM Red E1 AXS eTap
Rear Derailleur: SRAM Red E1 AXS eTap (12-speed)
Chain: SRAM Red E1
Cassette: SRAM Red E1 AXS eTap (11-33)
Crankset: SRAM Red E1 AXS eTap (48/35)
Bottom Bracket: Wishbone T47 Ceramic BB
Wheels: Chapter2 REHI 45 Carbon Wheel (Front and Rear)
Tires: Goodyear Eagle F1 R (700x28c)
Tubes: Tubes or Tubeless
Elevate your cycling experience and embrace victory with the Chapter2 TOA. Ride with confidence, conquer new challenges, and let the road become your pathway to triumph.
ABOUT THE FRAME
2-½ years in development with every detail carefully considered and meticulously executed, the TOA is the culmination of all the CHAPTER2 frames that have come before it. TOA which means "to be victorious, win" in Maori delivers an all-out, no-compromise carbon fibre race-ready frame platform designed, engineered, and manufactured to the most exacting standards.
Inspired by the TERE’s Performance All-Road DNA and the AO’s versatility, the TOA has all its cables/hoses tucked away from sight and the wind, creating an aerodynamically seamless transition between the MANA Bar and the TOA’s Kamm-Tail chassis.
Sporting a T47 Bottom Bracket for easy maintenance, the aluminium BB Shell works in unison with the high-tensile carbon carefully laid into the BB area to increase stiffness by up to 7.3% over the TERE. Additionally, the use of a Latex mandrel for the whole front triangle has increased the Headtube stiffness by 23.5% over the TERE for that out of the saddle and power to the pedals moment.
Other enhancements such as the bundled MANA Bar, Quick-Fit headset spacers, up to 32mm of tire clearance, vibration dampening Seatstays and Seatpost makes for a package that ticks all the right boxes.
FEATURES/BENEFITS
Stiff Racing Frame: Improved Power Transfer & Precise Steering
Cable Integration: Improved Aerodynamics & Clean Aesthetics
Compact Kamm-Tail: Aerodynamic & Stiffness where Needed
Up to 32mm Tire Clearance: Increased Tire Options
Dropped Stays: Improved Compliance for Endurance Rides
T47 BB: Noise-free & Easy to Service
Disc Brakes Only: Improved Braking & Modulation
Frameset Only: Bespoke & Personal
Limited Edition: Exclusivity
FRAME SPECS
Carbon: |
100% Made in Japan by Toray
|
Frame 6 Sizes: |
XXS, XS, S, M, L & XL
|
Fork Rakes (2): |
XXS, XS, S (53mm offset) and M, L, XL (43mm offset)
|
Frame Weight: |
1,099g (Disc) Size M +/- 3%
|
Fork Weight: |
419g (Disc) Uncut +/- 3%
|
Seatpost Weight:
|
135g Size M +/- 3%
|
Handlebar/Stem (MANA):
|
395g (100-420mm) +/- 3%
|
Headset:
|
1.5” C2 Integrated System
|
Gear Shifting Type:
|
Mechanical & Electric Shifting
|
Electronic Shifting:
|
SHIMANO® Di2, SRAM® eTAP & Campagnolo® EPS compatible
|
Battery Type:
|
Di2 SM-BTR-2 or BT-DN300 and EPS V3 Battery Compatible
|
Tire Clearance:
|
30mm (ISO) & 32mm Practical
|
Brake Type:
|
Disc Only
|
Bottom Bracket:
|
Internal T47
|
Thru-Axle:
|
Flat Mount FR 12x100mm, RR 12x142mm, E-Thru M12x1.5mm
|
Safety Standard:
|
EN ISO 4210:2014
|
UCI Accreditation:
|
UCI Approved
|
WHAT YOU GET
TORQUE SPECS
Saddle Rail:
|
6Nm |
Seatclamp:
|
8-10Nm |
Front Derailleur Hanger:
|
3-4Nm
|
Rear Derailleur Hanger:
|
2-3Nm
|
BB Cable Guide Cover:
|
1-2Nm
|
Water Bottle Cage Bolts:
|
2-3Nm
|
Thru-Axle:
|
10Nm |
MANA:
|
6Nm |
Description
Unleash Your Cycling Potential: Introducing the Chapter2 TOA with SRAM Red E1 AXS – Your Pathway to Victory.
Prepare to elevate your ride to new heights with the Chapter2 TOA, a fusion of artistry and performance meticulously crafted in the heart of New Zealand. Inspired by the spirit of triumph encapsulated in its Maori namesake, the TOA embodies victory in every pedal stroke.
Features:
Engineered to Perfection:
Crafted from premium Toray carbon fiber, every TOA frame and fork is a testament to Japanese precision and expertise, ensuring unparalleled strength and agility on every terrain.
Aerodynamic Excellence:
With a design inspired by the revered TERE and AO series, the TOA boasts aerodynamic perfection, featuring concealed cables and hoses for a seamless airflow, maximizing your speed and efficiency on the road.
Unrivaled Power and Control:
The TOA's T47 Bottom Bracket and aluminum BB Shell, paired with high-tensile carbon construction, deliver a remarkable 7.3% increase in stiffness over its predecessors, granting you unparalleled control and responsiveness. Experience a 23.5% boost in Headtube stiffness thanks to the innovative use of a Latex mandrel in the front triangle, empowering you to conquer even the steepest climbs with ease.
Enhanced Comfort and Versatility:
Equipped with the exclusive Chapter2 MANA2 Integrated handlebar/stem system, the TOA offers superior handling and comfort, while Quick-Fit headset spacers ensure a customizable fit for every rider. With up to 32mm of tire clearance and vibration-dampening Seatstays and Seatpost, the TOA excels in both performance and comfort, allowing you to push your limits without compromise.
SRAM Red E1 AXS – The Ultimate Performance Upgrade:
Redesigned for effortless performance, the SRAM Red AXS electronic groupset revolutionizes your ride with smooth front shifting, precise power measurement, and expanded gearing choices. Fully wireless connectivity and intuitive ergonomics ensure a seamless riding experience, while its lightweight design enhances your speed and agility on the road.
Specifications:
Frame: Chapter2 TOA Carbon (100% Made in Japan by Toray)
Fork: Chapter2 Carbon (100% Made in Japan by Toray)
Handlebar/Stem: Chapter2 MANA2 Integrated
Tape: Chapter2 Black Bar Tape
Saddle: Fizik Vento Argo R3 Adaptive Kium Rail Saddle
Seatpost: Chapter2 Carbon seat post (15mm offset)
Brakes: SRAM Red E1 AXS eTap (Front and Rear)
Shift Levers: SRAM Red E1 AXS eTap
Front Derailleur: SRAM Red E1 AXS eTap
Rear Derailleur: SRAM Red E1 AXS eTap (12-speed)
Chain: SRAM Red E1
Cassette: SRAM Red E1 AXS eTap (11-33)
Crankset: SRAM Red E1 AXS eTap (48/35)
Bottom Bracket: Wishbone T47 Ceramic BB
Wheels: Chapter2 REHI 45 Carbon Wheel (Front and Rear)
Tires: Goodyear Eagle F1 R (700x28c)
Tubes: Tubes or Tubeless
Elevate your cycling experience and embrace victory with the Chapter2 TOA. Ride with confidence, conquer new challenges, and let the road become your pathway to triumph.
Note:
All dimensions are in mm unless otherwise noted
TOA | XXS | XS | S | M | L | XL |
---|---|---|---|---|---|---|
Stack | 468 | 502 | 527 | 552 | 577 | 602 |
Reach | 357 | 363 | 372 | 381 | 390 | 399 |
A. Top Tube | 482 | 509 | 525 | 542 | 558 | 575 |
B. Head Tube | 72 | 95 | 115 | 135 | 160 | 186 |
C. Seat Tube Angle | 75° | 74° | 74° | 74° | 74° | 74° |
D. Head Tube Angle | 70° | 70° | 72° | 73° | 73° | 73° |
E. Seat Tube | 435 | 458 | 483 | 508 | 533 | 560 |
F. BB Drop | 73 | 73 | 73 | 73 | 73 | 73 |
G. Rear Centre | 408 | 408 | 408 | 408 | 408 | 408 |
H. Wheelbase | 959 | 973 | 975 | 973 | 986 | 1002 |
I. Front Centre | 562 | 576 | 578 | 576 | 589 | 605 |
J. Fork Offset | 53 | 53 | 53 | 43 | 43 | 43 |
K. Seatpost Setback | 10 | 10 | 10 | 10 | 10 | 10 |
Stem | NA | NA | NA | NA | NA | NA |
Stand over | 715 | 735 | 760 | 786 | 811 | 837 |
Rider Height | <165 | 160-170 | 165-175 | 170-180 | 175-185 | >180 |
Max. Tire Size | 32 | 32 | 32 | 32 | 32 | 32 |
Rear Caliper Mount | 25 | 25 | 25 | 25 | 25 | 25 |
Note:
All dimensions are in mm unless otherwise noted
Size | 80x380 | 80x400 | 90x391 | 90x400 | 100x402 | 100x420 | 110x413 | 110x420 | 120x424 | 120x440 | 130x435 |
---|---|---|---|---|---|---|---|---|---|---|---|
A. Stem | 80 | 80 | 90 | 90 | 100 | 100 | 110 | 110 | 120 | 120 | 130 |
B. Width at Drops | 380 | 400 | 391 | 400 | 402 | 420 | 413 | 420 | 424 | 440 | 435 |
C. Width at Hoods | 360 | 380 | 371 | 380 | 382 | 400 | 393 | 400 | 404 | 420 | 415 |
D. Reach | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
E. Drop | 128 | 128 | 128 | 128 | 128 | 128 | 128 | 128 | 128 | 128 | 128 |
F. Stem Angle | 7.0° | 7.0° | 7.0° | 7.0° | 7.0° | 7.0° | 7.0° | 7.0° | 7.0° | 7.0° | 7.0° |
